Parapet Calmp Cradle Hoist System

Parapet Calmp Cradle Hoist System

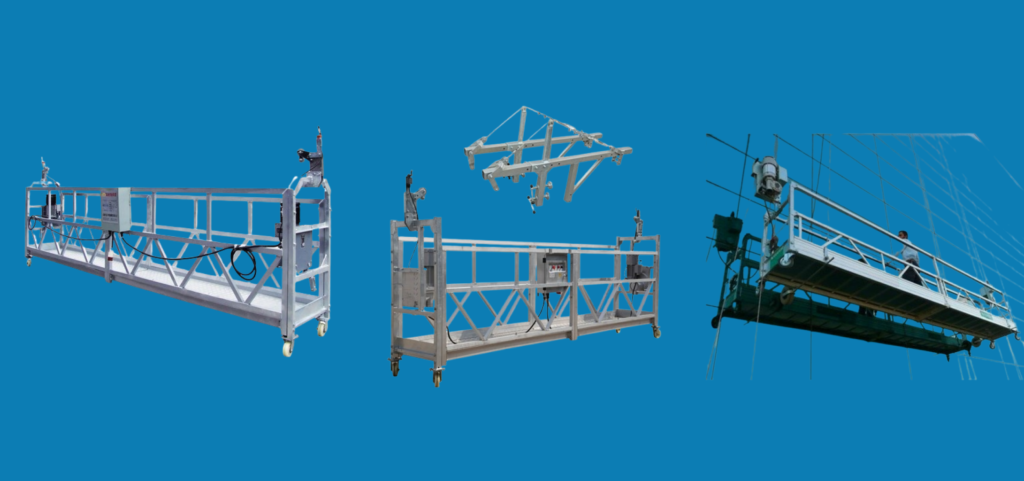

A Parapet Clamp Cradle Hoist System is a temporary suspended platform used for working at heights. It is designed to be attached to parapet walls (edges of buildings or structures) using special clamps. This system allows workers to move up and down safely while performing tasks like window cleaning, painting, maintenance, and construction.
Technical Parameters ZLP630 ZLP800
Rated Load 630kg 800kg
Lifting Speed 9.6m/min+0.5 8.3m/min+0.5
LX W X H (2000x3)x690x1180mm (2500x3)x690x1180mm
Length of Platform 1m-6m cab join together reely 1m-7.5m cab join together reely
Standard Length of Platform 6m(2mx3) 7.5m(2mx3)
Motor Power 2x1.5kw 1.8kw
Brake Torque 15nm 15nm
Steel Rope Angle Adjusting Range 3-8 3-8
Distance Between Two Steel Rope <100mm <100mm
Rated Stretch of front Beam 1500mm 1500mm
Counterweight 25kgx36pcs 25kgx36pcs
Diameter of Steel Rope 8.3mm 8.6mm
Standard Lifting Height 100m 100m
Motor Rotation Speed 1420r/min 1420r/min
Voltage 380V 380V
